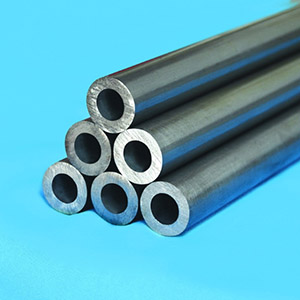

Incamake yandi miyoboro & Fitingi ikurikirana Ishusho

Ibisobanuro bigufi:

icyitonderwa 1 ： itariki yose ni indangagaciro.

icyitonderwa 2 ： “-” bivuze ko nta cyifuzo

. “W” bisobanura guhuza.

② mugihe igikwiye ari inkoni hamwe nisahani, C nyinshi igomba kuba 0.35

Ibikoresho byahimbwe byinshi C ni 0.35.kandi Si nyinshi ni 0.35 kandi ntigarukira byibuze

④ mugihe C iri munsi yibisabwa byinshi, C igabanye 0.01% naho Mn izongerwa 0.06%, kugeza kuri Mn nyinshi ni 1.35%

Cu, Ni Cr Mo yose hamwe iri munsi ya 1.00%

⑥ 0.32% 。Cr Mo yose hamwe iri munsi ya 0.32%

Analysis gusesengura ubushyuhe nibicuruzwa byanyuma bizashoboka byombi.

Ohereza imeri kuri twe Kuramo nka PDF

Ibicuruzwa birambuye

Ibicuruzwa

ASME SA-234 / SA-234M

NO	Icyiciro ①	Ibigize imiti%																	Umutungo wa mashini
		C	Mn	P	S	Si	Cr	Mo	Ni	Cu	V	Nb	N	Al	Ti	Zr	W	B	Umujinya MPa	Tanga umusaruro MPa	Kwagura L / T.	ukuboko HB

1	WPB ②③④⑤⑥	≤0.30	0.29- 1.06	≤ 0.050	≤ 0.058	≥ 0.10	≤ 0.40	≤ 0.15	≤ 0.40	≤ 0.40	≤ 0.08	-	-	-	-	-	-	-	415- 585	40240	22/14%	≤ 197
2	WPC ③④⑤⑥	≤ 0.35	0.29- 1.06	≤ 0.050	≤ 0.058	≥ 0.10	≤ 0.40	≤ 0.15	≤ 0.40	≤ 0.40	-	≤ 0.08	-	-	-	-	-	-	485- 655	≥ 275	22/14%	≤ 197
3	WP1	≤ 0.28	0.30- 0.90	≤ 0.045	≤ 0.045	0.10- 0.50	-	0.44- 0.65	-	-	-	-	-	-	-	-	-	-	380- 555	≥205	22/14%	≤ 197
4	WP12 1	0.05- 0.20	0.30- 0.80	≤ 0.045	≤ 0.045	≤ 0.60	0.80- 1.25	0.44- 0.65	-	-	-	-	-	-	-	-	-	-	415- 585	20220	22/14%	≤ 197
	WP12 2																		485- 655	75275	22/14%	≤ 197
5	WP11 1	0.05- 0.15	0.30- 0.60	≤ 0.030	≤ 0.030	0.50- 1.00	1.00- 1.50	0.44- 0.65	-	-	-	-	-	-	-	-	-	-	415- 585	≥205	22/14%	≤ 197
6	WP11 2	0.05- 0.20	0.30- 0.80	≤ 0.040	≤ 0.040	0.50- 1.00	1.00- 1.50	0.44- 0.65	-	-	-	-	-	-	-	-	-	-	485- 655	75275	22/14%	≤ 197
	WP11 3																		520- 690	≥310	22/14%	≤ 197
7	WP22 1	0.05- 0.15	0.30- 0.60	≤ 0.040	≤ 0.040	≤ 0.50	1.90- 2.60	0.87- 1.13	-	-	-	-	-	-	-	-	-	-	415- 585	≥205	22/14%	≤ 197
	WP22 3																		520- 690	≥310	22/14%	≤ 197
9	WP9 1	≤0.15	0.30- 0.60	≤ 0.030	≤ 0.030	0.25- 1.00	8.0- 10.0	0.90- 1.10	-	-	-	-	-	-	-	-	-	-	415- 585	≥205	22/14%	≤ 217
	WP9 3																		520- 690	≥310	22/14%	≤ 217
10	WP91	0.08- 0.12	0.30- 0.60	≤ 0.020	≤ 0.010	0.20- 0.50	8.0- 9.5	0.85- 1.05	≤ 0.40	-	0.18- 0.25	0.06- 0.10	0.03- 0.07	≤ 0.02	≤ 0.01	≤ 0.01	-	-	585- 760	15415	20 / -%	≤ 248
11	WP911	0.09- 0.13	0.30- 0.60	≤ 0.020	≤ 0.010	0.10- 0.50	8.5- 9.5	0.90- 1.10	≤ 0.40	-	0.18- 0.25	0.06- 0.10	0.04- 0.09	≤ 0.02	≤ 0.01	≤ 0.01	0.90- 1.10	0.0003- 0.0006	620- 840	40440	20 / -%	≤ 248
